ضغط الهواء المتوسط ​​BR1 BR2 BR3 المطرقة بت زر DTH من قطر 64 مم 70 مم 76 مم

BR Series DTH Button Bit 64mm 70mm 76mm 95mm for BR1 BR2 BR3 DTH Hammer

1'' 2'' Middle Air Pressure DTH Bits

DTH Button Bits for BR1, BR2, BR2 Hammer.

BR Series DTH Button Bit Specification

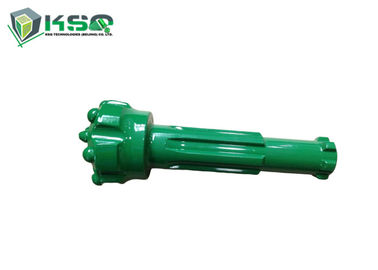

BR2 76mm DTH Button Bit Photos:

Product: DTH Button Bit

Diameter: 76mm

Bit Shank: BR2

Face Design: Convex

Button/Carbide Type: Spherical

Button Number and Diameter: 4x10mm front, 6x13mm gauge

Flushing Holes: 2 front flushing holes

Weight: 4.2kg per piece

Color: Green

More Photos:

Bit Face Shape Selection:

Center Drop Bit:

For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.

Maximum hole deviation control.

Concave Face

The all-around application bit face specifically for medium hard and homogenerous rock formations.

Good hole deviation control and good flushing capacity.

Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, any may reduce the load and wear on gauge buttons, but poor hole deviation control.

Double Gauge Face

This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.

Flat Face Bit

This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.

Competitive Advantage

• High-grade tungsten carbide inserts
• Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment

We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

Applications

• Underground mining

• Down the hole rock drilling
