| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | MIROC |
| إصدار الشهادات: | ISO |
| رقم الموديل: | R32-41mm |
| الحد الأدنى لكمية: | 1 |
|---|---|
| وقت التسليم: | 20-30 |
| القدرة على العرض: | 3000 |
| المعالجة السطحية: | الرش | عملية التصنيع: | ختم |
|---|---|---|---|
| مادة: | كربيد التنغستن | خيط: | R32 |
| لون: | مخصصة | الاستخدام: | حفر الآبار ، حفر المعادن ، حفر البناء ، حفر المحاجر ، حفر الألغام |
| نمط الزر: | أزرار كروية ، مكافئة ، باليستية | مواصفة: | قطر 41 ملم |
| إبراز: | R32-41mm thread button bits,rock drill machine drifter rod bits,mining bit with R32 thread,rock drill machine drifter rod bits,mining bit with R32 thread |
||
The button bit has higher technical content, longer drilling time and higher drilling efficiency. Button bit has large bearing capacity, good wear resistance and fast drilling speed. According to the different carbide teeth, the tooth shape can be divided into hemispherical, conical and parabolic buckles and other types.
It is made of high-quality steel raw materials through quenching and tempering treatment to improve the hardness and toughness of the product. It is widely used in granite and marble quarries, gold mines, railways, tunnels, etc., suitable for fixed (short hole) and blasting drilling systems. High cost performance. The delivery is timely, and the design, product quantity and button quantity can be delivered according to customer requirements.

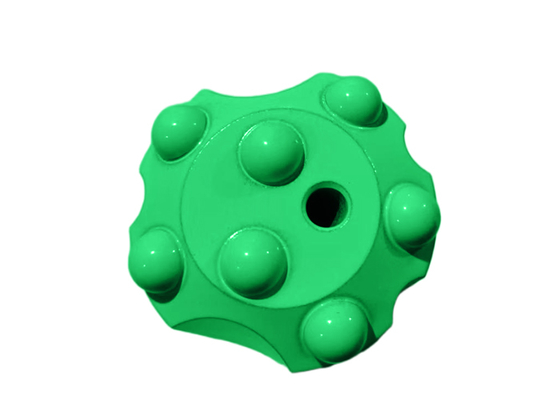

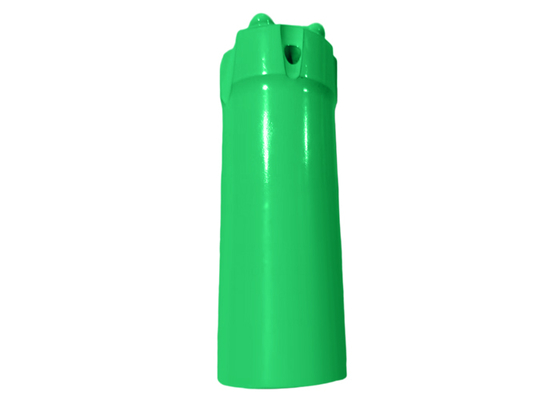

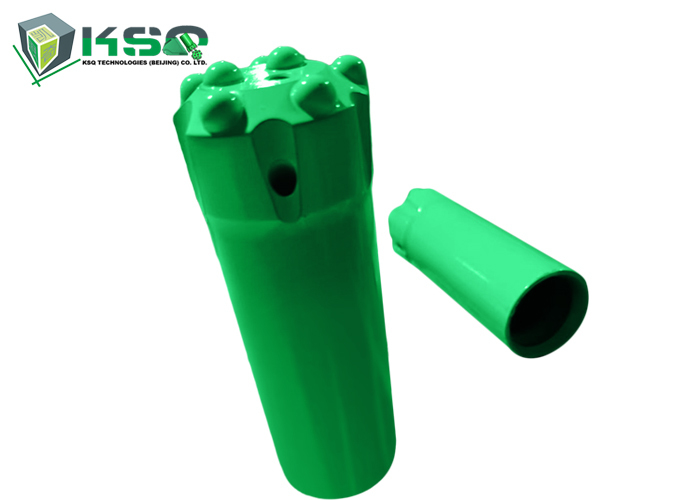

Product Name: R32 Drill Bits
Thread type: R32
Head diameters: 41mm ~ 76mm
Face designs: flat face
Carbide shape: Dome, Ballistic, Semi-Ballistic
Skirt designs: Standard, Retrac
| Thread | Diameter range | Skirt Design | Face Design | Button Design |
|---|---|---|---|---|
| R22 | 35 - 45mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R25 | 33 - 57mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R28 | 36 - 51mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R32 | 41 - 89mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R35 | 48 - 51mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R38 | 64 - 102mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T38 | 57 - 102mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T45 | 70 - 127mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T51 | 76 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T60 | 89 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| ST58 | 89 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| GT60 | 93 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| ST68 | 102 - 152mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
