| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | MIROC |
| إصدار الشهادات: | ISO |
| رقم الموديل: | T45-76 ملم |
| الحد الأدنى لكمية: | 1 |
|---|---|
| وقت التسليم: | 20-30 |
| القدرة على العرض: | 3000 |
| نموذج لا.: | T45-76 ملم | المعالجة السطحية: | المجلفن |
|---|---|---|---|
| الكلمة الرئيسية: | بت الزر | نوع الزر: | كروية، باليستيكية، مخروطية |
| نوع الموضوع: | T45 | لون: | عند الطلب |
| إبراز: | T45 thread button drill bit,76mm rock drilling bit,thread button rock drill tool,76mm rock drilling bit,thread button rock drill tool |
||
Our thread button drill bit size from 33mm-178mm, include thread type R28, R32, R38, T38, T45, T51, ST58, ST68 etc for kinds of button bit, reaming button bit, retract button bit, drop centre retract button bit.

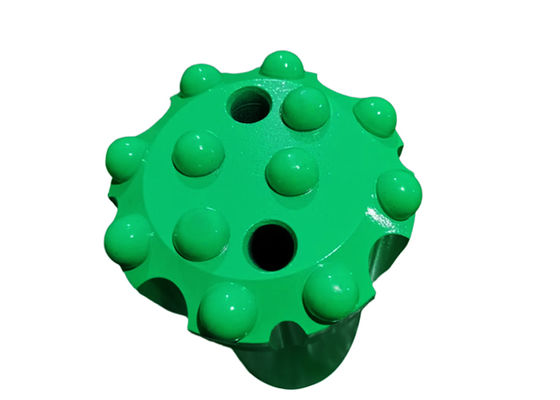

The button shapes of our button bits are spherical, ballitic, conical for customers to choose. The buttons can be hot insert to the body and welded to the body as per custmers need and many kinds of good materials are available.
The button bit is widely used for rock drilling, blasting holes and other drill works in quarries, coal mines, road and dam constructions and other similar projects.
| Thread Button Bit | Diameter | Carbide size(mm) | Flushing hole | Weight (kg) |
|---|---|---|---|---|
| mm | in | Front | Gauge | Front | Side | ||
| Qty×size | Qty×size | ||||
| R/T38 (1 1/2") | 64 | 2 1/2 | 3×11 | 6×12 | 2 | 1 | 1.62 |
| 70 | 2 3/4 | 4×10 | 8×10 | 2 | 1 | 1.98 | |
| 76 | 3 | 4×11 | 8×12 | 2 | 1 | 2.28 | |
| 89 | 3 1/2 | 6×11 | 8×12 | 2 | 2 | 3.32 | |
| T45 (1 3/4") | 70 | 2 3/4 | 4×10 | 8×10 | 2 | 1 | 2.24 |
| 76 | 3 | 4×11 | 8×12 | 2 | 1 | 2.46 | |
| 89 | 3 1/2 | 6×12 | 8×14 | 2 | 2 | 3.52 | |
| 102 | 4 | 7×12 | 8×14 | 2 | 2 | 4.46 | |
| 115 | 4 1/2 | 8×12 | 8×14 | 2 | 2 | 6.68 | |
| T51 (2") | 76 | 3 | 4×12 | 8×12 | 2 | 1 | 3.62 |
| 89 | 3 1/2 | 6×12 | 8×14 | 2 | 2 | 4.48 | |
| 102 | 4 | 7×12 | 8×14 | 4 | 1 | 5.26 | |
| 115 | 4 1/2 | 8×12 | 8×14 | 4 | 1 | 7.62 | |
| 127 | 5 | 9×12 | 8×16 | 4 | 1 | 8.58 |
