Name: H19x108mm Length 228mm Forged High Manganese Hex Shank Integral Drill Rod For Hard Rock Mining Quarry
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: H19x108mm
Price: 25.50 USD
Availability: InStock

منزل المنتجات صخر يحفر أداة

H19x108mm Length 228mm Forged High Manganese Hex Shank Integral Drill Rod For Hard Rock Mining Quarry

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	MIROC
إصدار الشهادات:	ISO
رقم الموديل:	H19x108mm

شروط الدفع والشحن:

الحد الأدنى لكمية:	1
الأسعار:	$25.50
تفاصيل التغليف:	حالات خشبية
وقت التسليم:	20-30
القدرة على العرض:	3000

اتصل

مفصلة وصف المنتج

عرقوب:	سداسي 22/25/19	اسم المنتج:	قضيب الحفر لا يتجزأ
طلب:	حفر الصخور	طول:	قابلة للتخصيص
خيارات الطول:	يتراوح من 400 ملم إلى 9600 ملم	أقطار بت:	20 ملم – 42 ملم
إبراز:	forged high manganese hex drill rod,hard rock mining integral drill rod,H19x108mm quarry drill rod , hard rock mining integral drill rod , H19x108mm quarry drill rod

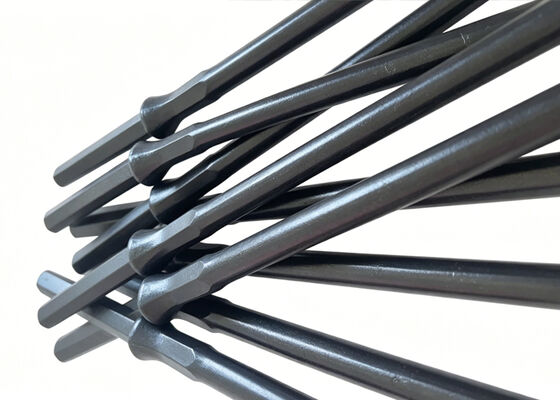

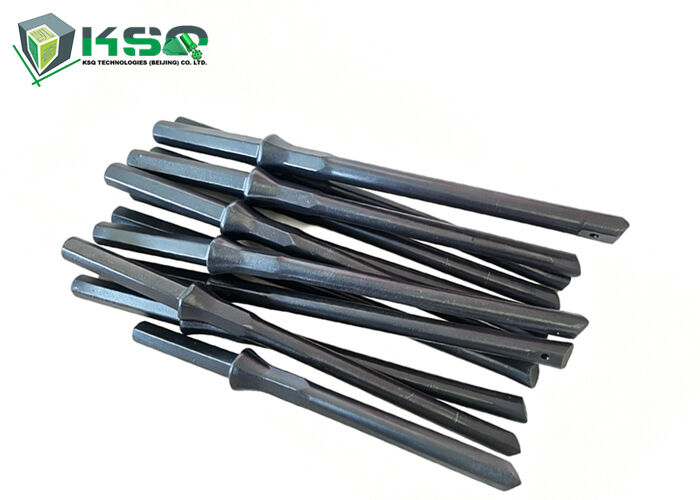

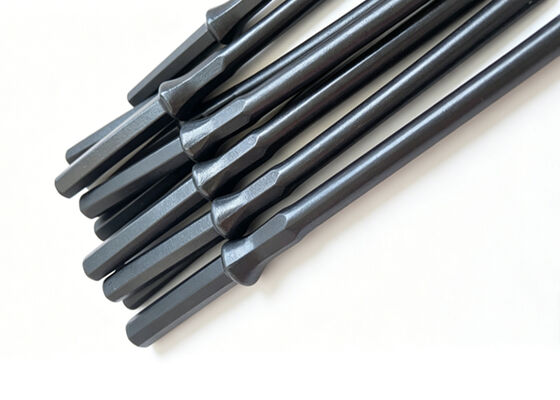

H19x108mm Length 228mm Forged High Manganese Hex Shank Integral Drill Rod

Integral Drill Rods (also known as integral drill steels) are specifically engineered for small-hole drilling applications in demanding environments including stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching operations.

These rods are ideally paired with small-power rock drills such as air leg rock drills and hand-held rock drills. By minimizing impact energy loss, they significantly improve drilling speed and operational efficiency. Designed for borehole diameters ranging from 23 mm to 45 mm.

Technical Specifications

Standard Configurations

Shank Types: H22×108mm, H19×108mm, standard hex
Bit Diameters: 20 mm - 42 mm
Length Range: 400 mm - 6,000 mm

Compatibility

All products are compatible with major brands including Atlas Copco, and are widely used in mining, water well drilling, tunneling, quarrying, construction, and civil engineering projects.

Performance Benefits

Through-hardened shank end provides high wear resistance and extended service life
Stainless steel flushing tube lining prevents corrosion and breakage
Super tough 40SiMnCrNiMo steel engineered for both wet and dry drilling conditions
Special anti-corrosion oil coating protects the flushing hole of the rod
High-quality insert secured using specialized bronze-brazing process

Product Dimensions & Weights

Item	Length (mm)	Length (inch)	Bit Diameter (mm)	Weight (kg)
Chisel Bit Integral Drill Steel Shank 19 x 108 mm (3/4" x 4 1/4")	400	1 1/3	29	1.3
	500	1 2/3	29	1.5
	800	2 5/8	28	2.2
	1000	3 2/7	28	2.6
	1200	4	27	3
	1600	5 1/4	27	3.9
	2400	7 7/8	26	5.7
	3200	10 1/2	25	7.5
	4000	13 1/8	24	9.2
